Home Shop HDI Replacements for Yanmar GM Stainless Steel Mixing Elbow

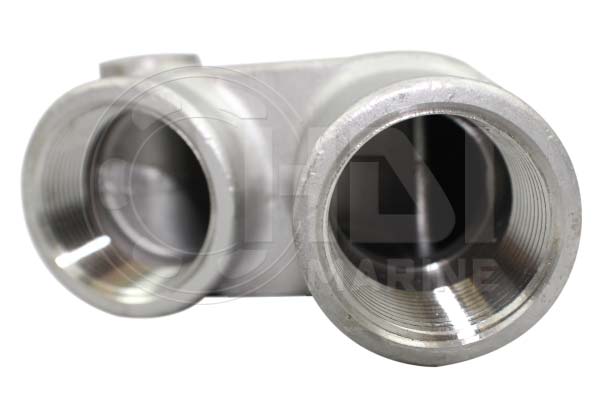

GM Stainless Steel Mixing Elbow

Name: GM Stainless Steel Mixing Elbow
SKU: GM
Price: 240.00 USD
Availability: InStock

$240.00

SKU: GM

Replaces Yanmar PN: 128370-13600 / 128270-13600 / 124070-13520 / 128370-13610 / 104214-13531 /128990-13520

OVERVIEW

This HDI Marine item replaces Yanmar PN 128370-13600 / 128270-13600 / 124070-13520 / 128370-13610 / 104214-13531 / 128990-13520
Fits the following engines: 1GM / 2GM / 1GM10 / 3GM30 / 3GM30F / 3HM / 3HM35F / 2GMF / 3HMF / 3GMF / 2GM30F / YSM12 / YSM8 / YSB8 / 3GM10 / 3GMD / 2GM20 / 2GM30 / 2GM20F / 2YM-15 / 3YM-30 / 3YM-30 / 3YM-20 / 2QM15 / 2QM20 / 3QM30 / 3HM35
Precision CNC machined investment cast 316 stainless steel

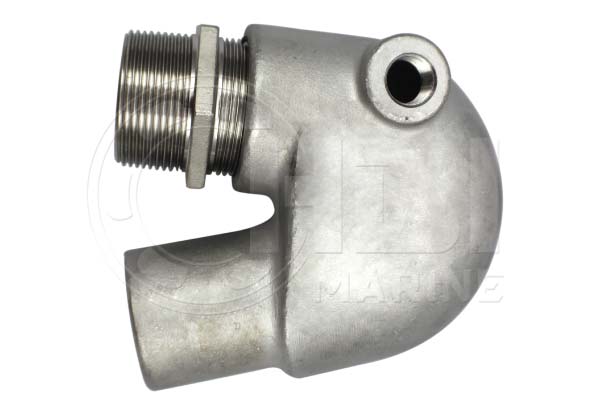

Includes LH/RH yellow zinc plated stainless steel nipple as shown in photos replaces Yanmar PN 104214-13580 ($29.25 value)
3/8” pipe thread water inlet
2” OD discharge diameter with 1-1/4 BSPT ID
Product weighs 4.5 lbs (2kg)
Shipping weight is 6 lbs (3kg)
