HOT4KIT4 - Stainless Steel Exhaust Kit for Yanmar 4LH (Z) series
$1,800.00
Fits 4LHA “Z” Series Engines
OVERVIEW

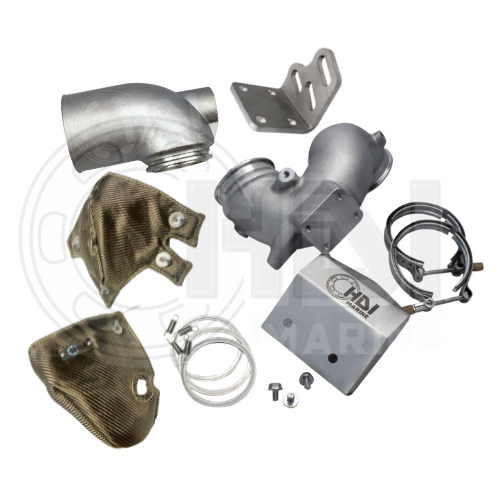

- This HDI Marine Kit replaces the following parts
- Hot4 (Yanmar Hot Exhaust Bend P/N 119175-13301)
- VB (Yanmar Mixing Elbow P/N 119773-13500 / 119773-13501)
- 2 – VBC Clamps (OEM P/N 119773-13300)
- MAT4 – Wool Mats / Heat Blankets (OEM P/N 119175-13320)
- Shield4 – Heat Shield (OEM P/N 119175-13700) with bolts
- BKT4-4 – Mounting Bracket with bolts.
- Fits the following engines: 4LHA-STZE / 4LHA-STZP / 4LHA-DTZE / 4LHA-DTZEP / 4LHA-HTZE / 4LHA-HTZEP
- Precision CNC machined investment cast 316 stainless steel.
- Purchase Includes 2 gaskets that replace Yanmar PN 119773-13250 ($8.30)
- HOT4 Dimensions
- 3.5” (89mm) Flange Diameter
- 2.625” (72mm) Bore Diameter
- VB Dimensions
- 1 ¼ BSPT Thread water inlet
- 4” (105mm) discharge diameter
- 3 1/2″ (89mm) Flange diameter
- Precision CNC machined investment cast 316 stainless steel.
