HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series

$1,800.00
HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series
HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series
HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series
HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series
HOT4KIT6 - Stainless Steel Exhaust Kit for Yanmar 6LP (Z) series
SKU: HOT4KIT6

Fits 6LPA “Z” Series

Tags: , , , ,

OVERVIEW

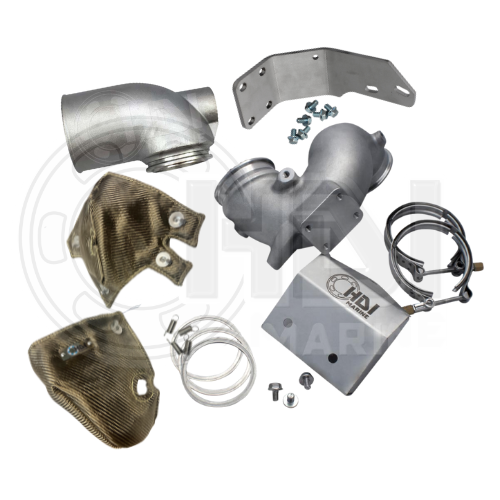

  • This HDI Marine Kit replaces the following parts
    • Hot4 (Yanmar Hot Exhaust Bend P/N 119175-13301)
    • VB (Yanmar Mixing Elbow P/N 119773-13500 / 119773-13501)
    • 2 - VBC Clamps (OEM P/N 119773-13300)

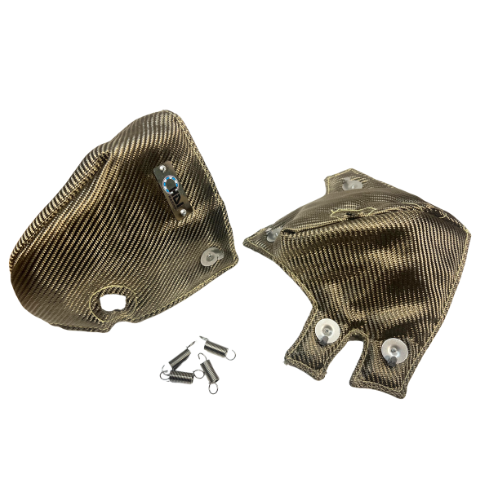

    • MAT4 - Wool Mat / Heat Blanket (OEM P/N 119175-13320)
    • Shield4 - Heat Shield (OEM P/N 119175-13700) with bolts
    • BKT4-6 - Mounting Bracket (OEM P/N 119778-13550) with bolts
  • Fits the following engines: 6LPA-STZE / 6LPA-STZEP / 6LPA-DTZE / 6LPA-DTZEP / 6LPA-DTZP
  • Precision CNC machined investment cast 316 stainless steel
  • Purchase Includes 2 gaskets that replace Yanmar PN 119773-13250 ($8.30)

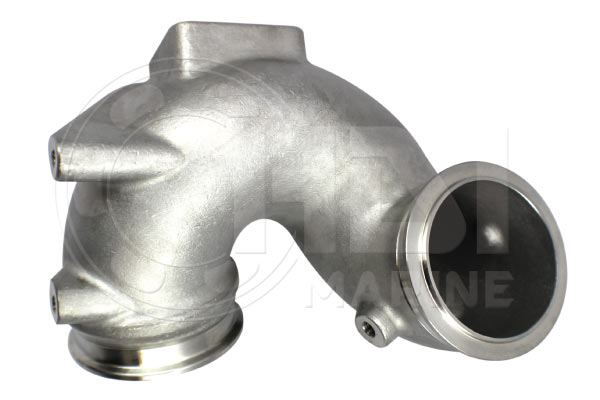

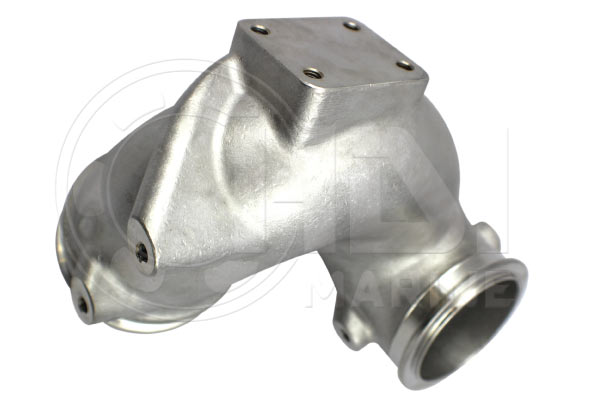

  • HOT4 Dimensions
    • 3.5” (89mm) Flange Diameter
    • 2.625” (72mm) Bore Diameter

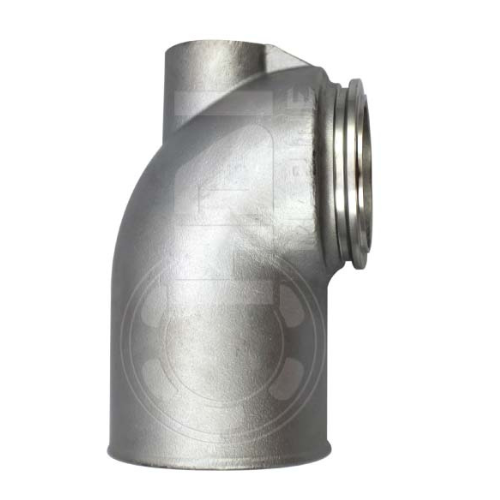

  • VB Dimensions
    • 1 ¼ BSPT Thread water inlet
    • 4” (105mm) discharge diameter
    • 3 1/2"  (89mm) Flange diameter
  • Precision CNC machined investment cast 316 stainless steel
